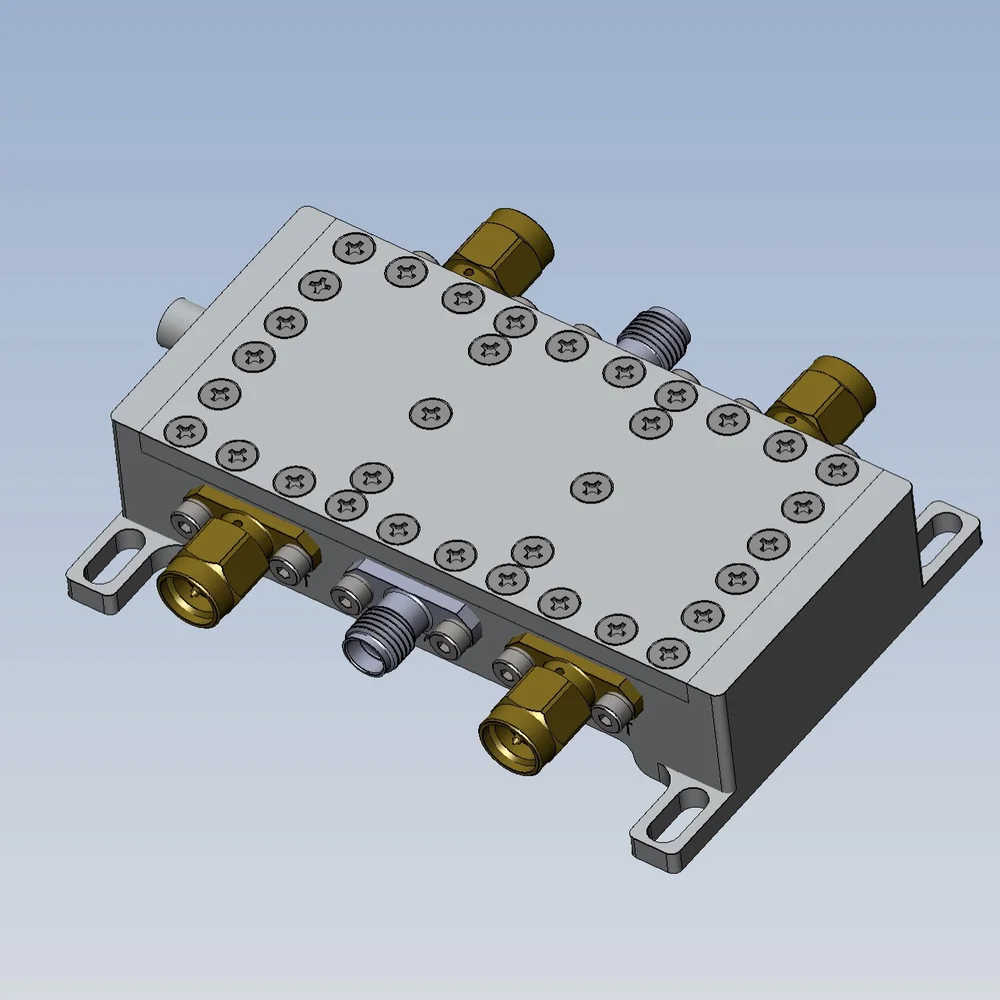

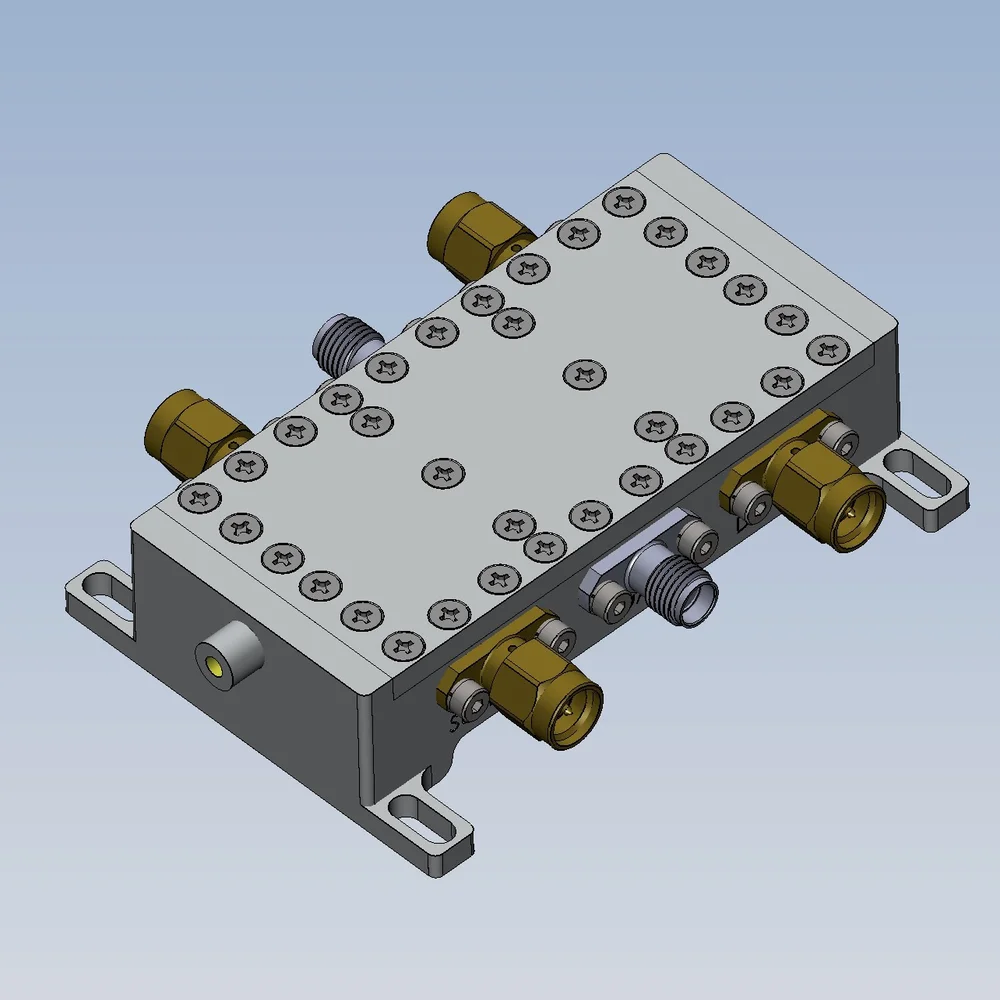

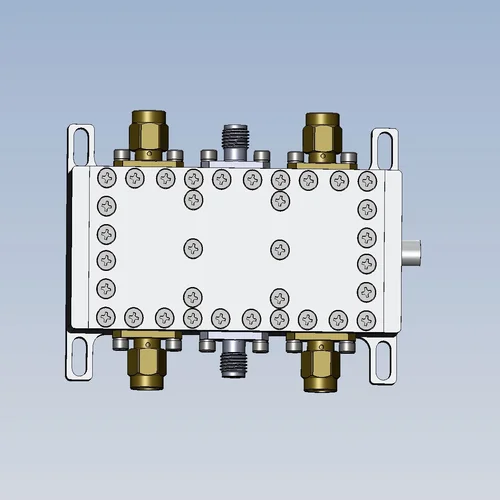

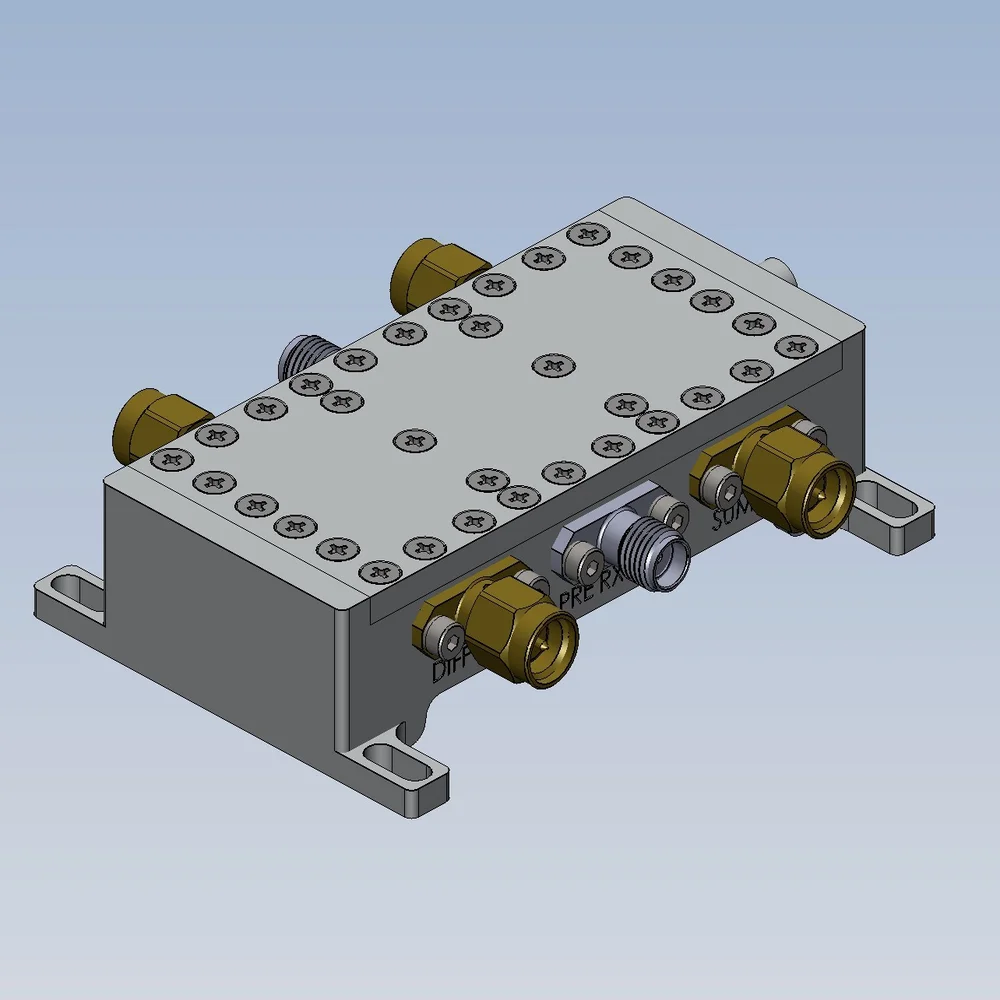

COUPLER SMA 14.3 TO 14.7 MHz 35 DB 50 OHM

Standard Lead time: 12 weeks

*Actual Lead time will be confirmed by Quote case by case.

Datasheet

Product Attributes

Parameters	Value
Type	TBD
Connector	SMA-F
Coupling, dB	40
Impendance, Ohm	50
Lower Frequency, GHz	14.3
Upper Frequency, GHz	14.7
Center Frequency, GHz	14.5
Insertion Loss, max, dB	1.5

*The specifications may be customized case by case.

Descriptions

RF Coupler ECC14140530-01 (Working Frequency 14.3 to 14.7 GHz)

The RF Coupler is a high-performance device meticulously engineered for applications in the microwave frequency range. Operating seamlessly within the frequency spectrum of 14.3 to 14.7 GHz, this coupler is designed to meet the demands of advanced communication systems, radar applications, and other high-frequency domains.

Key Features:

Wide Frequency Range: With a working frequency spanning from 14.3 to 14.7 GHz, this RF coupler offers versatility for various applications, ensuring reliable signal transfer across the specified frequency band.
Precise Coupling: The coupler is configured with a coupling factor of 35 dB, providing a well-balanced transfer of signal power between ports. The ±15 dB tolerance ensures adaptability to different system requirements, offering flexibility in signal distribution.
Robust Connectors: Equipped with female SMA connectors, this RF coupler ensures secure and efficient connections. SMA connectors are known for their durability and suitability for high-frequency applications, making them a reliable choice for demanding environments.
Quality Craftsmanship: The RF coupler is crafted with precision and attention to detail, adhering to industry standards to guarantee optimal performance and reliability. Its design is optimized for low insertion loss and minimal signal distortion.

Applications:

Communication Systems: Ideal for use in microwave communication systems, providing a stable and efficient means of signal distribution.
Radar Systems: Well-suited for radar applications, ensuring accurate signal coupling and transfer within the specified frequency range.
Test and Measurement: Suitable for test setups and measurement equipment requiring precise signal handling in the 14.3 to 14.7 GHz range.

Conclusion:

The RF Coupler with a working frequency of 14.3 to 14.7 GHz, coupled with its 35 dB coupling factor and female SMA connectors, stands as a reliable solution for high-frequency signal distribution. Whether deployed in communication networks, radar systems, or testing environments, this coupler delivers consistent and efficient performance, contributing to the success of advanced RF applications.
